SERIA GR

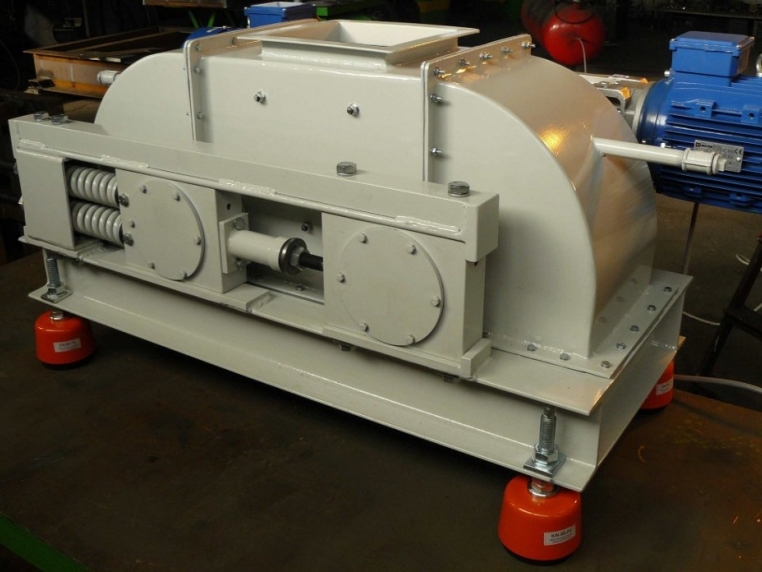

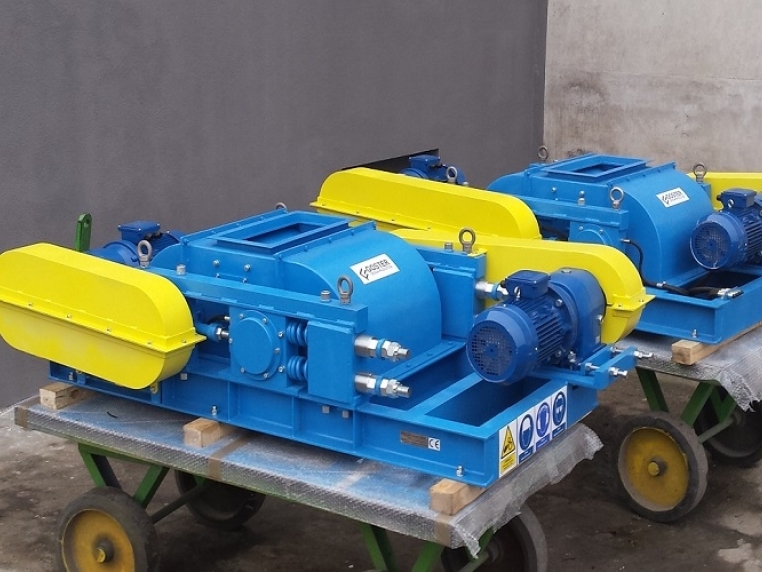

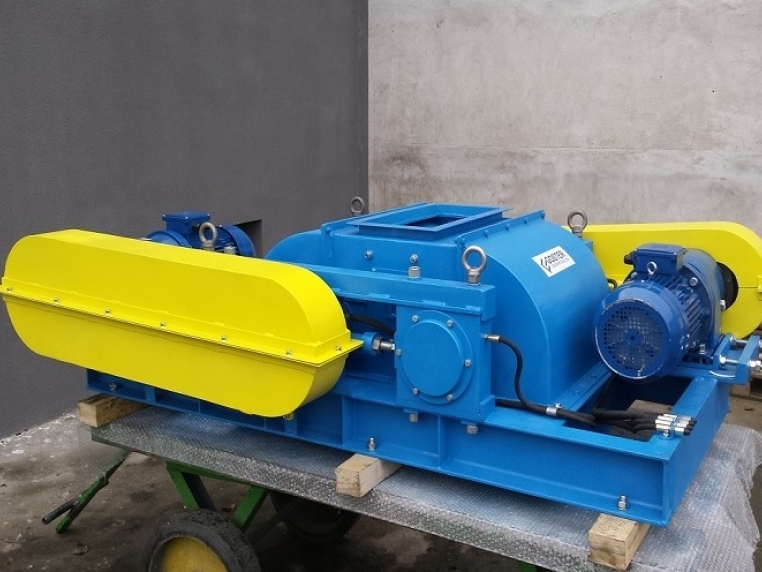

GR Crushers are made for recycling glass

Product catalog

Download

Capacity

The correct ratio of the cylinder diameter to its length, proper engine power, an option to use different tooth shapes, the selection of appropriate cylinder speed, and the ability to use scrapers for cleaning the cylinders have all contributed to improving the performance of GR crushers.

Modular construction

Thanks to the crusher's simple modular design it is possible to install the machine in places that are difficult to reach, which reduces the costs of transport and installation.

Protection

Overload protection and gap setting. Thanks to two protection systems - mechanical or hydraulic and electrical - the crusher is protected against overloads and uncrushable materials. There is an option of using two gap-setting systems interchangeably: automatic-hydraulic system controlled by the machine's console and a manual one.

Disassembly

Thanks to many years of experience in machine construction and repair we were able to design crushers easier to assembly and disassembly.

Longer periods between repairs

The GR crushers use state-of-the-art construction materials, which prolong the parts' lifetime cycle and reduce the machine's weight. The over-sized bearings applied in our crushers allow for their longer failure-free operation. Crusher's spare parts are designed to be easily replaced with small lifting devices, which are usually supplied as accessories for the crusher.

Technical data

GENERAL PURPOSE CYLINDER CONE CRUSHERS

Crusher Rotor motor's dimensions [mm] Gap [mm] Capacity [m3/h] Power [kW]
GR-45 ø400x500 3-15 up to 12 2x5,5
GR-65 ø600x500 5-40 up to 20 2x11
GR-88 ø800x800 15-80 up to 50 2x30
GR-820 ø800x2000 25-80 up to 70 2x30
